| overview | |||
| model |
VPOL16A-12-SIP
|
manufacturer | CUIINC |
| series | VPOL16A-12-SIP | Category | DC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | VPOL16A-12-SIP | Stable voltage output | REGULATED（1-3%） |
| output power | 16A | Short circuit protection | CONTINUOUS |
| input voltage | 9-14VDC | temperature range | -40˚cto+85˚c |
| Output voltage | 0.75VDC | efficiency | |
| package | SIP | Is it imported | Y |
| Package Size | 50.8x8.30x12.95mm | authentication | RoHS,CE |
| maximum output current | 16A | Grade | High quality |
| Isolation Voltage | NON-ISOLATED VDC | Housing material | plastics |

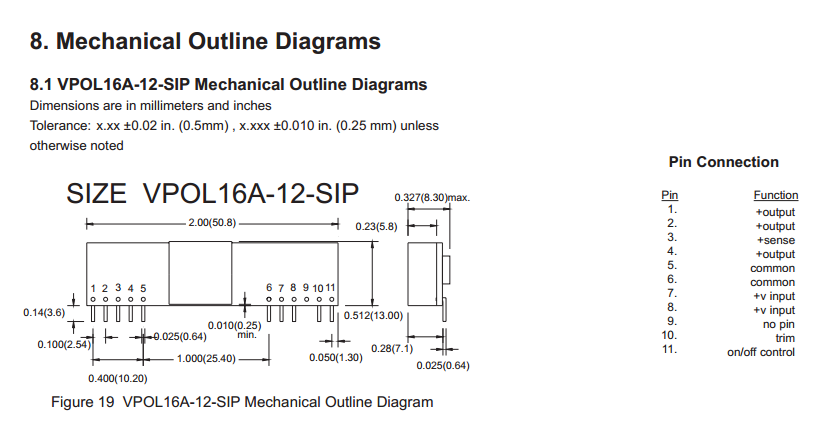

| Pin arrangement diagram | view | ||
