| overview | |||
| model |
LI120-10B24
|
manufacturer | MORNSUN |
| series | LI120-10Bxx | Category | AC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | LI120-10B24 | Stable voltage output | REGULATED（1-3%） |
| output power | 120W | Short circuit protection | CONTINUOUS |
| input voltage | 85-264VAC | temperature range | -40˚cto 85˚c |
| Output voltage | 24VDC | efficiency | |
| package | Is it imported | N | |
| Package Size | 35.0*125.0*112.70mm | authentication | RoHS,CE |
| maximum output current | 5A | Grade | High quality |
| Isolation Voltage | 3000 VAC | Housing material | metal |

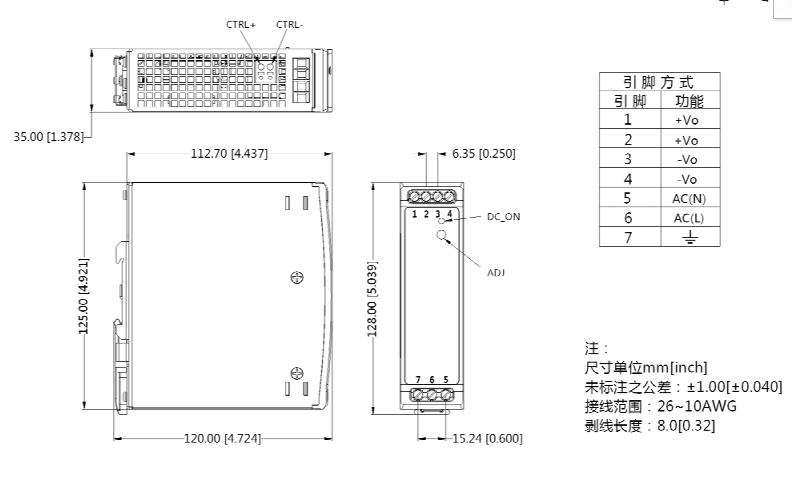

| Pin arrangement diagram | view | ||
