| overview | |||
| model |
UEI-15/3.3-Q12P-C
|
manufacturer | MURATA |
| series | UEI | Category | DC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | UEI-15/3.3-Q12P-C | Stable voltage output | REGULATED（1-3%） |
| output power | 49.5W | Short circuit protection | CONTINUOUS |
| input voltage | 9-36VDC | temperature range | -40˚cto 85˚c |
| Output voltage | 15VDC | efficiency | 90 % |
| package | Is it imported | Y | |
| Package Size | 48.3x38.1x9.7mm | authentication | RoHS,CE |
| maximum output current | 3.3A | Grade | High quality |
| Isolation Voltage | 2250 VDC | Housing material | |

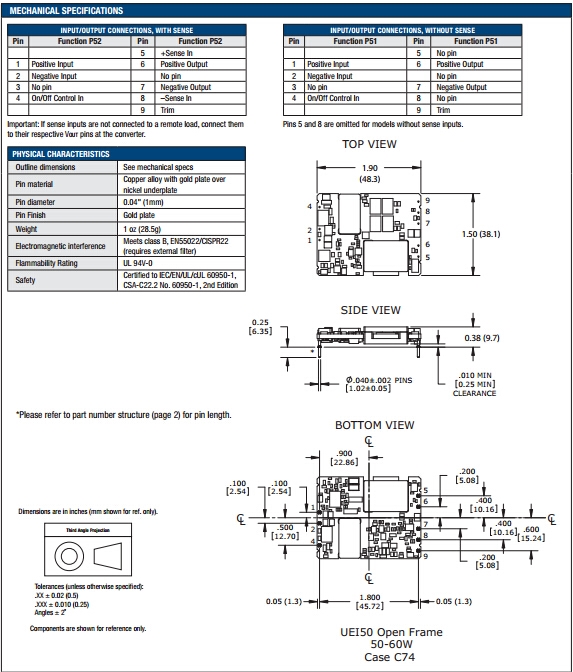

| Pin arrangement diagram | view | ||
