| overview | |||
| model |
A1205XD-2W
|
manufacturer | MICRODC |
| series | A-XD-2W | Category | DC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | A1205XD-2W | Stable voltage output | UNREGULATED |
| output power | 2W | Short circuit protection | 1second(-suffix"P" continous) |
| input voltage | 12VDC | temperature range | -40-85°C |
| Output voltage | ±05VDC | efficiency | |
| package | DIP14 | Is it imported | N |
| Package Size | 19.5*9.8*7.7mm | authentication | CE，ROHS |
| maximum output current | 200 | Grade | High quality |
| Isolation Voltage | 1000VDC VDC | Housing material | plastics |

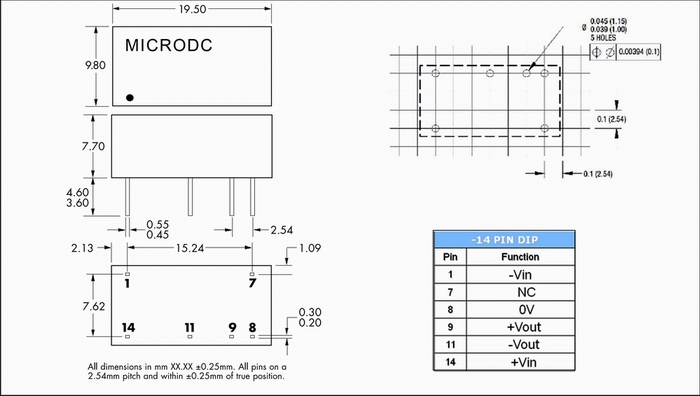

| Pin arrangement diagram | view | ||
