| overview | |||
| model | FB0505XS-1W | manufacturer | MICRODC |
| series | FB-XS-1W | Category | DC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | FB0505XS-1W | Stable voltage output | UNREGULATED |
| output power | 1W | Short circuit protection | 1 second |
| input voltage | 5VDC | temperature range | -40-85°C |
| Output voltage | 05VDC | efficiency | |
| package | SIP7 | Is it imported | N |
| Package Size | 19.5x12.5x9.8mm | authentication | CE，ROHS |
| maximum output current | 200mA | Grade | High quality |
| Isolation Voltage | 5200 VDC | Housing material | plastics |

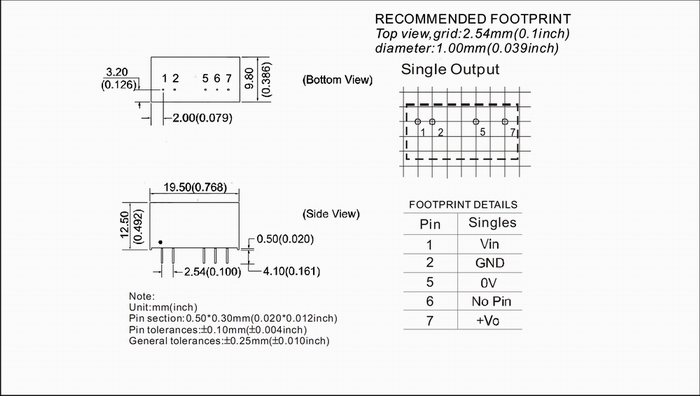

| Pin arrangement diagram | view | ||
