model:B0305XT-W25
supply
overview
model B0305XT-W25 manufacturer MICRODC
series B-XT-W25 Category DC/DC
Function Description 1/4Watt | DC-DCConverter 1000VDC
detailed parameters
model B0305XT-W25 Stable voltage output UNREGULATED
output power 0.25W Short circuit protection 1second(-suffix"P" continous)
input voltage 3.3VDC temperature range -40-85°C
Output voltage 05VDC efficiency
package SMD8 Is it imported N
Package Size 12.7*11.2*6.6mm authentication CE,ROHS
maximum output current 50 Grade High quality
Isolation Voltage 1000VDC VDC Housing material plastics

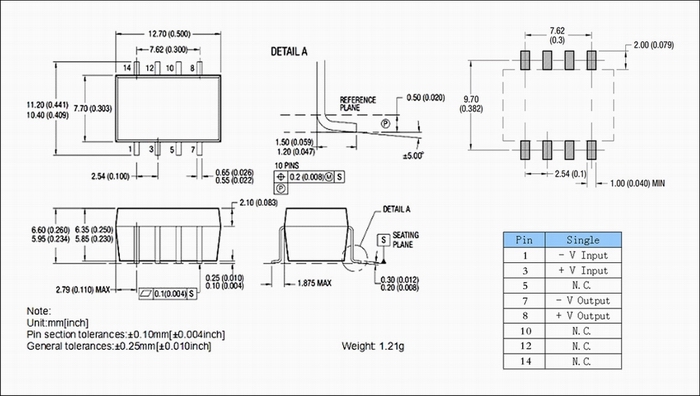

Pin arrangement diagram view
View manufacturer's MICRODC series B-XT-W25 for more models of power supplies
