| model |
MRWI60-48S051C
|
manufacturer | MINMAX |
| series | MRWI60C | Category | DC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | MRWI60-48S051C | Stable voltage output | REGULATED（1-3%） |
| output power | 60W | Short circuit protection | CONTINUOUS |
| input voltage | 48VDC | temperature range | -40°Cto+90°C |
| Output voltage | 5.1VDC | efficiency | |
| package | DIN-Rail | Is it imported | Y |
| Package Size | 112.0x67.8x38.0mm | authentication | RoHS,CE |
| maximum output current | 12000mA | Grade | High quality |
| Isolation Voltage | Housing material | plastics | |

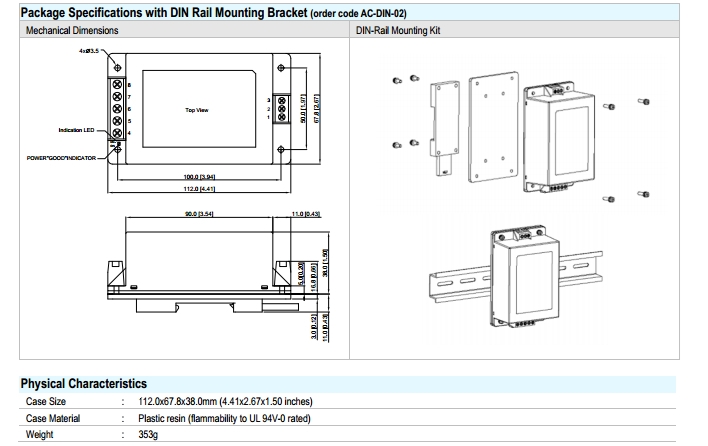

| Pin arrangement diagram | view | ||
