| overview | |||
| model |
BUB15-48D3W
|
manufacturer | Bothhand USA |
| series | BUB15W | Category | DC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | BUB15-48D3W | Stable voltage output | REGULATED（1-3%） |
| output power | 15W | Short circuit protection | CONTINUOUS |
| input voltage | 18-75VDC | temperature range | -40˚cto85˚c |
| Output voltage | ±15VDC | efficiency | |
| package | DIL,SIL | Is it imported | Y |
| Package Size | 50.8x25.4x10.2mm | authentication | RoHS,CE |
| maximum output current | ±500 | Grade | High quality |
| Isolation Voltage | 1.5K Vdc VDC | Housing material | Plastics or metal |

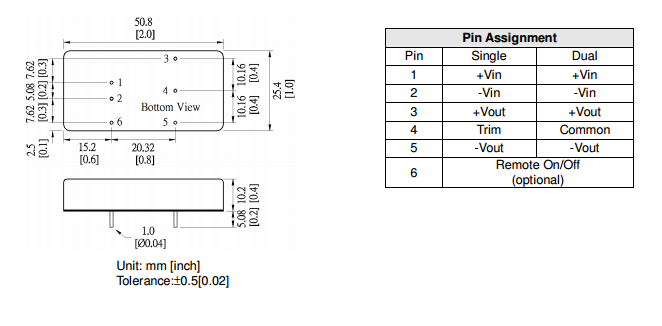

| Pin arrangement diagram | view | ||
