| overview | |||
| model |
A1209M-1W
|
manufacturer | MICRODC |
| series | A-XM-1W | Category | DC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | A1209M-1W | Stable voltage output | UNREGULATED |
| output power | 1W | Short circuit protection | 1second(-suffix"P" continous) |
| input voltage | 12VDC | temperature range | -40-85°C |
| Output voltage | ±09VDC | efficiency | |
| package | SIP6 | Is it imported | N |
| Package Size | 16.5*7.7*6mm | authentication | CE，ROHS |
| maximum output current | 55.6 | Grade | High quality |
| Isolation Voltage | 1000VDC VDC | Housing material | plastics |

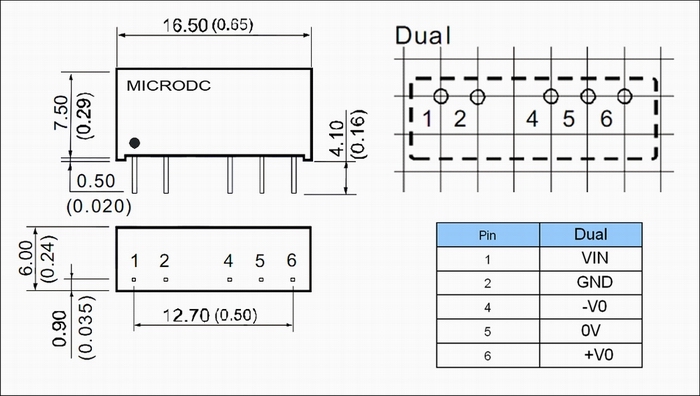

| Pin arrangement diagram | view | ||
