| overview | |||
| model |
HSP-300-5
|
manufacturer | MEAN WELL |
| series | HSP-300 | Category | AC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | HSP-300-5 | Stable voltage output | REGULATED（1-3%） |
| output power | 300W | Short circuit protection | CONTINUOUS |
| input voltage | 180-264VAC | temperature range | -40˚cto+85˚c |
| Output voltage | 5VDC | efficiency | 87 % |
| package | Is it imported | Y | |
| Package Size | 210x81x31mm | authentication | RoHS,CE |
| maximum output current | 60A | Grade | High quality |
| Isolation Voltage | 300 VAC | Housing material | metal |

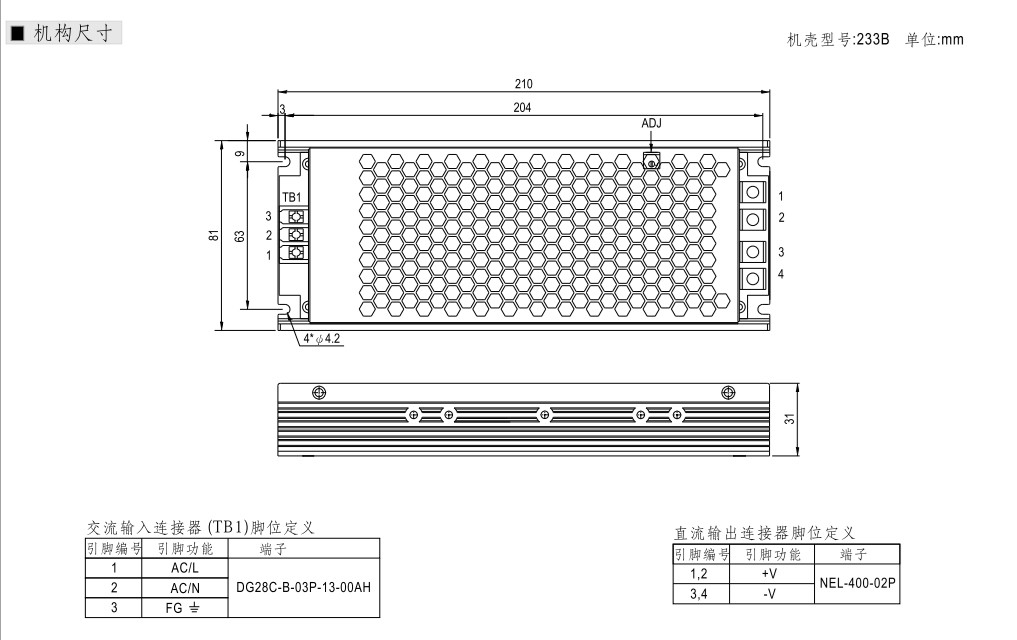

| Pin arrangement diagram | view | ||
